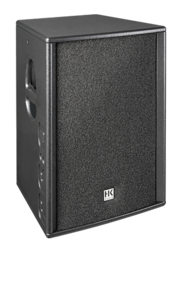

A fullrange cab in the classic 12"/1" format, this unit serves up a balanced sonic image and high SPL with remarkable speech intelligibility. The integrated DSP-based power circuitry delivers 1,200 watts to make the PR:O 12 D an assertive sound reinforcement tool. It’s also the perfect satellite for the PR:O 18 SUB A subwoofer.
Max SPL 124 dB half space (10% THD)
Max SPL peak 132 dB half space (10% THD)
Max SPL calculated 133 dB half space
Frequency response +/- 3 dB 72 Hz – 16 kHz
Frequency response -10 dB 62 Hz – 18 kHz
Power Rating 1200 W
Amplifier Class D – biamped
Active protection circuits Peak and RMS Sound Limiter (separate for HF and LMF)
Low/Mid Speaker 1x 12"
HF Driver 1"
HF horn 90° x 55° CD horn
Cut-off Frequency active 2.5 kHz FIR X-Over with 48 dB/oct.

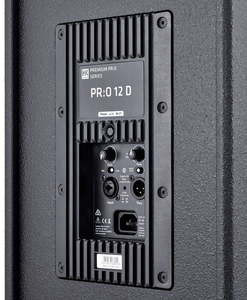

Connections 1x XLR–1/4“-Combo In, bal., 1x XLR-Through
Equalizer Tone knob (Music / Speech) Bass Boost
Pole mount DuoTilt 3/7
Rigging points 3x M8

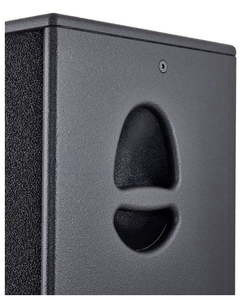

Handles 2, integrated
Enclosure MDF
Grille Metal grille with black acoustic foam
Finish Acrylic enamel, black
Optional accessories Protective cover, Satellite Add-On M20, Adjustable pole M20
Dimensions (WxHxD) 40.5 × 59 × 37 cm
Weight 18.7 kg / 41.2 lbs
פרטי המוצר
Application options: As standalone fullrange speakers, in combination with PR:O 18 SUB A and PR:O 210 SUB A subwoofers
1,200 watt class-D bi-amped
DSP for plug"n"play handling without complicated layered menus
Integrated control over EQ, X-over, limiter and more functions
Flat/Boost EQ presets
Tone knob for quick Music/Speech voicing adjustments
FIR X-over
Custom-designed speakers
90° x 55° wide-beam CD horn for optimum sound
Rugged, roadworthy housing tuned to deliver 132 dB SPL and punchy bass response
Modular mix-n-match design for versatile use (fullrange, 2.1, half-stack and full-stack systems)
M8 rigging points for easy installation
Made in Germany
5-year warranty
