PRODUCT INFO
Model
L5 112 XA
Max SPL 128 dB half space (@ 10% THD)
Max SPL peak 136 dB half space (@ 10% THD)
Max SPL calculated 137 dB half space
Frequency response +/- 3 dB 100 Hz – 18 kHz
Frequency response -10 dB 72 Hz – 20 kHz
Power Rating 1000 W
Amplifier Class D – Biamped
Active protection circuits Undervoltage-Protection, Thermoprotection, Short-Circuit Protection, Overcurrent-Protection, Subsonic 24dB/oct., Peak limiter
Low/Mid Speaker 1x 12"
HF Driver 1"
Horn characteristics 60° x 40° CD horn, rotatable
Cut-off Frequency active 1,65 kHz, 24 dB/oct.

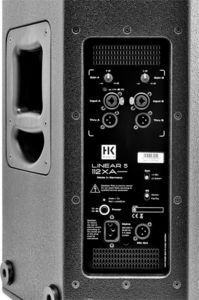

Connections 2x XLR–1/4"-Combo In, 2x XLR-Thru, 1x XLR-Mix Out
Input Sensitivity +4dBu @ Gain Centerclick / L5 System Level
Sensitivity switch Line/Mic Input A
Equalizer EQ switch Flat/Monitor
Angles up 33°
Pole mount DuoTilt 3/7
Rigging points 3x M8
Handles 2, integrated
Enclosure Hybrid (birch multiplex / MDF)

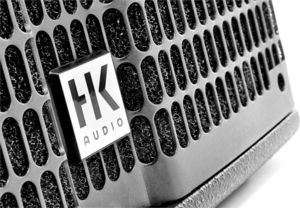

Grille 2 mm metal grille backed with black acoustic foam
Finish Acrylic enamel, black
Optional accessories Protective cover
Dimensions (WxHxD) 37 × 67 × 30 cm
Weight 21.1 kg / 46.5 lbs
Application: Mid/High Unit, Monitor
1000 Watt Class-D (650 W + 350 W, biamped)
12" Speaker with 2,5" voice coil
1" Driver with 1,75" voice coil
136 dB Max SPL Peak @ 10% THD (halfspace)
CD Horn (60° x 40°) , rotatable
Rugged hybrid (birch multiplex /MDF) housing
2 separate Inputs
EQ switch (Top / Monitor)

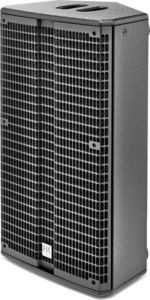

L5 112 XA

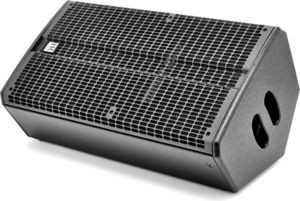

The 12"/1" model is housed in a multipurpose enclosure tuned to deliver the highest sound pressure levels (136 dB SPL peak). A switchable filter configures it for use as a top unit (adding long range capability) in systems with Linear SUB 2000/ 2000 A units. The L5 112 XA also makes an excellent monitor with a plenty of gain before feedback. Its rotatable 60° x 40° CD horn provides the right coverage pattern for each scenario.
L5 112 XA 12"/1"
