סאב אקטיבי ״10 600w כפול 2 מותאם למערכת ELEMENTS

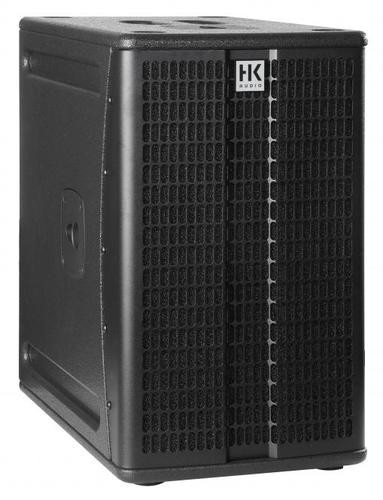

The E 110 Sub AS is remarkably compact and light,
yet its two onboard 600-watt power amps deliver twice the performance of the E 110 Sub A.
And that makes this subwoofer the perfect choice if you wish to flexibly extend an ELEMENTS PA system.
With the E 110 Sub AS you can run up an additional E 110 Sub and up to two E 835 mid / high units for a total of 16 broandband speakers.
Model
E 110 Sub AS
Headline
System Subwoofer
Nominal impedance
10 Ω
Frequency response 10 dB
45 Hz – 150 Hz (measured with active separation)
Subwoofer amplifier
1 × 600 W/Class-D @ 4 Ω
Active protection circuits
RMS limiter, subsonic filter; DC, load, & thermal (temp. controlled fan)
LF Speaker
1 × 10″ (2" voice coil)
Connections
1 x XLR-Kombi-In, 1 x XLR-Through, 2 x Speakon-Out (1 x Sub + 1 x Mid-High), 2 x E-Connect-Out
Input Sensitivity
(selectable) +4 dBu / -10 dBu
Continous power into 4 ohms
600 W Class-D @ 4 Ω (Subs) / 600 Watt Class-D @ 4 Ω (Mid/High)

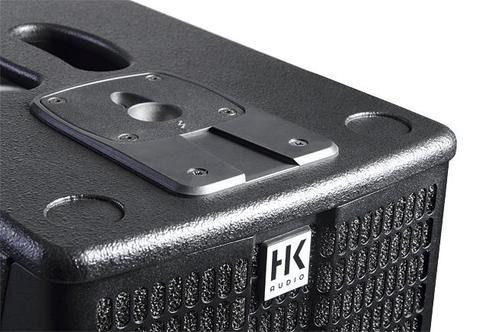

Pole mount
2 x E-Connect
Dimensions (WxHxD)
30 × 48 × 46 cm
Weight
18,5 kg / 40,8 lb
