PR:O 15 XD
This truly multifunctional cab gets the job done nicely as a satellite, as a compact 15"/1" fullrange cabinet, or as a low-profile stage monitor. Its balanced frequency response defeats feedback and the Music/Speech knob tunes the unit for the given application. The integrated DSP-based power circuitry delivers 1,200 watts. And all this makes the PR:O 15 XD an exceptionally powerful sound reinforcement tool.
product info
Max SPL 125 dB half space (10% THD)
Max SPL peak 130 dB half space (10% THD)
Max SPL calculated 133 dB half space
Frequency response +/- 3 dB 61 Hz – 16 kHz
Frequency response -10 dB 57 Hz – 18 kHz
Power Rating 1200 W
Amplifier Class D – biamped
Active protection circuits Peak and RMS Sound Limiter (separate for HF and LMF)
Low/Mid Speaker 1x 15"
HF Driver 1"
HF horn 90° x 55° CD horn
Cut-off Frequency active 2.5 kHz FIR X-Over with 48 dB/oct.

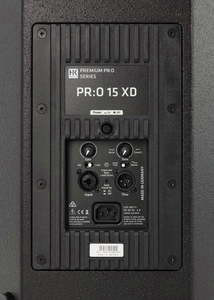

Connections 1x XLR–1/4“-Combo In, bal., 1x XLR-Through
Equalizer Tone knob (Music / Speech) Bass Boost
Angles up 42°

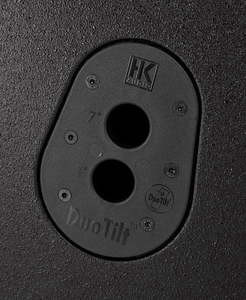

Pole mount DuoTilt 3/7
Rigging points 3x M8
Handles 2, integrated
Enclosure MDF
Grille Metal grille with black acoustic foam
Finish Acrylic enamel, black
Optional accessories Protective cover, Satellite Add-On M20, Adjustable pole M20
Dimensions (WxHxD) 47 × 62.5 × 45.5 cm
Weight 22.6 kg / 49.8 lbs
Application options: As standalone fullrange speakers, in combination with PR:O 18 SUB A and PR:O 210 SUB A subwoofers, and as low-profile stage monitors
1,200 watt class-D bi-amped
DSP for plug-n-play handling without complicated layered menus
Integrated control over EQ, X-over, limiter and more functions
Flat / Boost EQ presets
Tone knob for quick Music / Speech voicing adjustments
FIR X-over
Custom-designed speakers
90° x 55° wide-beam CD horn for optimum sound
Rugged, roadworthy housing tuned to deliver 130 dB SPL and punchy bass response
Modular mix-n-match design for versatile use (standalone and in 2.1, half-stack and full-stack
M8 rigging points for easy installation
Made in Germany
5-year warranty
