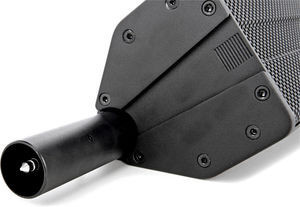

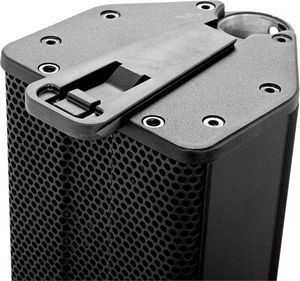

E 435
The E 435 mid/ high unit is loaded with four 3.5" high-performance speakers developed specifically for ELEMENTS. These four vertically arrayed speakers achieve a very even pattern of throw, with the volume, frequency spectrum, and audio image remaining uniform throughout the audience area. One column may comprise up to four mid/ high units, which are quickly and reliably connected via E-Connect.
Model
E 435 Mid/High Unit
Product Class Elements
Power-handling nominal (RMS) 150 W
Nominal impedance 16 ohms
Sensitivity 1W/1m 97 dB, all measurements taken under half-space conditions
Frequency response -10 dB 140 Hz – 20 kHz, via integrated system filter
Speaker 4x 3,5" wideband speakers
Directivity 70° horizontal
Crossover frequency 140 Hz, 12 dB/ oct.
Connections 1x E-Connect in, 1x E-Connect out
Dimensions (WxHxD) 11 × 38* x 12 cm (excluding E-Connect coupler dimension)
Weight 2,35 kg / 5,2 lbs.
פרטי המוצר
Scalable mid/ high unit featuring line array technology
Excellent directivity; projects sounds evenly
Rugged aluminum housing and E-Connect bus
Exceedingly light weight (2,35 kg)
