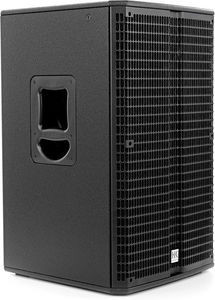

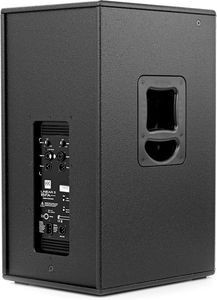

L5 115 FA HK AUDIO
L5 115 FA
Able to handle 1,000 watts as a stand-alone cabinet, this ultra efficient 15"/1" fullrange mid/ high unit is the loudest reference speaker in its class. Like the L5 FA 112, it features an asymmetrical horn with an optimized the coverage pattern that is wider up front and grows more directed with distance, thereby achieving greater range.
Model
L5 115 FA
Max SPL 128 dB half space (@ 10% THD)
Max SPL peak 137 dB half space (@ 10% THD)
Max SPL calculated 138 dB half space
Frequency response +/- 3 dB 57 Hz – 18 kHz
Frequency response 10 dB 48 Hz – 20 kHz
Power Rating 1000 W
Amplifier Class D – Biamped
Active protection circuits Undervoltage-Protection, Thermoprotection, Short-Circuit Protection, Overcurrent-Protection, Subsonic 24dB/oct., Peak limiter
Low/Mid Speaker 1x 15"
HF Driver 1"
Horn characteristics 60° 90°(asymm) x 55° CD horn, rotatable
Cut-off Frequency active 1,65 kHz, 24 dB/oct.

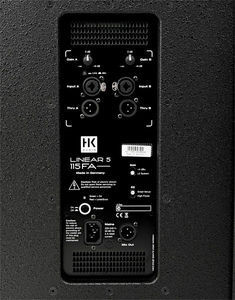

Connections 2x XLR–1/4"-Combo In, 2x XLR-Thru, 1x XLR-Mix Out
Input Sensitivity +4dBu @ Gain Centerclick / L5 System Level
Sensitivity switch Line/Mic Input A
Equalizer EQ switch Small Venue/High Power
Pole mount DuoTilt 3/7
Rigging points 3x M8

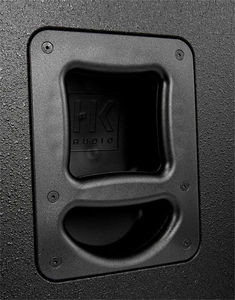

Handles 2 integrated
Enclosure Hybrid (birch multiplex / MDF)
Grille 2 mm metal grille backed with black acoustic foam
Finish Acrylic enamel, black
Optional accessories Protective cover
Dimensions (WxHxD) 45 × 71 × 45 cm
Weight 30.7 kg / 67.7 lbs
PRODUCT INFO
Application: Mid/High unit, Stand Alone System, DJ-Monitoring
1000 Watt Class-D (650 W + 350 W, biamped)
15" Speaker with 3" voice coil
1" Driver with 1,75" voice coil
137 dB Max SPL Peak @ 10% THD (halfspace)
Asymmetrical horn (60°-90° x 55°), rotatable
Rugged hybrid (birch multiplex /MDF) housing
2 separate Inputs
EQ switch (High Power/Small Venue)
