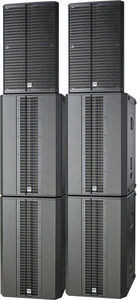

L5 Big Venue Pack HK AUDIO
The Linear 5 series" largest powered PA system, the Big Venue Pack comes with everything you need to entertain audiences of up to 600*. It consists of two 15" mid/ high units, four mighty L-SUB 2000 subwoofers and matching accessories. This system"s dynamic response is nothing short of remarkable; it delivers the goods for the most demanding sound reinforcement applications. Simply set the mid/high units" Gain/EQ switch and the subwoofers" Configuration switch – that"s all it takes to voice the system. The integrated controller"s presets do the rest.
info
Model
L5 115 FA
Max SPL 128 dB half space (@ 10% THD)
Max SPL peak 137 dB half space (@ 10% THD)
Max SPL calculated 138 dB half space
Frequency response +/- 3 dB 57 Hz – 18 kHz
Frequency response 10 dB 48 Hz – 20 kHz
Power Rating 1000 W
Amplifier Class D – Biamped
Active protection circuits Undervoltage-Protection, Thermoprotection, Short-Circuit Protection, Overcurrent-Protection, Subsonic 24dB/oct., Peak limiter
Low/Mid Speaker 1x 15"
HF Driver 1"
Horn characteristics 60° 90°(asymm) x 55° CD horn, rotatable
Cut-off Frequency active 1,65 kHz, 24 dB/oct.
Connections 2x XLR–1/4"-Combo In, 2x XLR-Thru, 1x XLR-Mix Out
Input Sensitivity +4dBu @ Gain Centerclick / L5 System Level
Sensitivity switch Line/Mic Input A
Equalizer EQ switch Small Venue/High Power
Pole mount DuoTilt 3/7
Rigging points 3x M8
Handles 2 integrated
Enclosure Hybrid (birch multiplex / MDF)
Grille 2 mm metal grille backed with black acoustic foam
Finish Acrylic enamel, black
Optional accessories Protective cover
Dimensions (WxHxD) 45 × 71 × 45 cm
Weight 30.7 kg / 67.7 lbs
Model
L SUB 2000 A
Max SPL 132 dB half space (@ 10% THD)
Max SPL peak 133 dB half space (@ 10% THD)
Max SPL calculated 135 dB half space
Frequency response +/- 3 dB 49 Hz – X-Over
Frequency response -10 dB 39 Hz – X-Over
Power Rating 1200 W
Amplifier Class D
Active protection circuits Undervoltage-Protection, Thermoprotection, Short-Circuit Protection, Overcurrent-Protection, Subsonic 24dB/Oktave, Peak Limiter
LF Speaker 2x 12" featuring advanced cooling technology
Cut-off Frequency active 100 Hz / 120 Hz variable with 24 dB/oct.
Connections 2x XLR–1/4"-Combo In, 2x XLR-Thru, 2x XLR-Mid/High Out
Input Sensitivity +4 dBu @ Gain center-notched
Pole mount 1x M20 (K&M)
Handles 4x HK Audio MultiGrip
Enclosure Birch multiplex
Grille 2 mm metal grille backed with black acoustic foam
Finish Acrylic enamel, black
Optional accessories Protective cover, M20 Distance Pole Add-On, tilt unit, 100 mm casters
Dimensions (WxHxD) 51 × 81 × 61 cm
Weight 47.5 kg / 104.7 lbs
• Sets up quickly and is ready for use in no time at all
• Fully active component management (gain adjustment) for utmost flexibility and utility
• All components needed for safe operation on board and optimized to suit user needs
• Mid/high units may be used separately
• Factory-included accessories
Consisting of:
2 x L5 115 FA
4 x L Sub 2000 A
2 x Tilt Unit
6 x protective covers
User profile Audience size*
Rock Band 500-600
Power DJ 500-600
Hire companies 500-600
- About the audience size: The numbers are more for orientation rather than a definite recommendation. The actual coverage will depend on the room’s size, shape, appointments and furnishings, the area that you want cover, and the desired SPL.
L5 Big Venue Pack
