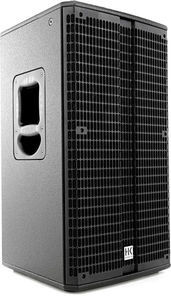

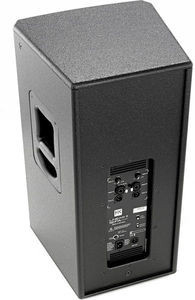

L5 112 FA
This 12"/ 1" fullrange mid/ high unit delivers the most powerful bass performance in its class. Its asymmetrical horn (60° – 90° x 55°) was engineered for optimum sound dispersion. Equipped with a switchable EQ, this cab can be voiced for standalone applications (mono or stereo) and for use as a mid/ high unit when paired with a Linear subwoofer.
PRODUCT INFO
Model
L5 112 FA
Max SPL 127 dB half space (@ 10% THD)
Max SPL peak 135 dB half space (@ 10% THD)
Max SPL calculated 137 dB half space
Frequency response +/- 3 dB 64 Hz – 18 kHz
Frequency response 10 dB 57 Hz – 20 kHz
Power Rating 1000 W
Amplifier Class D – Biamped
Active protection circuits Undervoltage-Protection, Thermoprotection, Short-Circuit Protection, Overcurrent-Protection, Subsonic 24dB/oct., Peak Limiter
Low/Mid Speaker 1x 12"
HF Driver 1"
Horn characteristics 60° 90°(asymm) x 55° CDhHorn, rotatable
Cut-off Frequency active 1,65 kHz, 24 dB/oct.

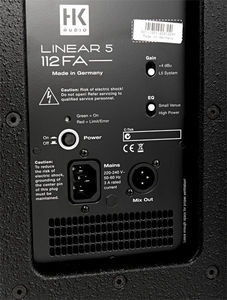

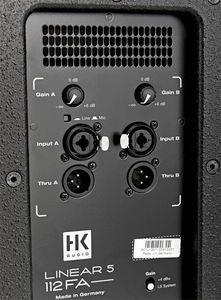

Connections 2x XLR–1/4"-Combo In, 2x XLR-Thru, 1x XLR-Mix Out
Input Sensitivity +4dBu @ Gain Centerclick / L5 System Level
Sensitivity switch Line/Mic Input A
Equalizer EQ switch Small Venue/High Power
Pole mount DuoTilt 3/7
Rigging points 3x M8
Handles 2, integrated
Enclosure Hybrid (birch multiplex / MDF)
Grille 2 mm metal grille backed with black acoustic foam
Finish Acrylic enamel, black
Optional accessories Protective cover
Dimensions (WxHxD) 37 × 67 × 36,5 cm
Weight 23.9 kg / 52.7 lbs
Application: Mid/High unit, Stand Alone System
1000 Watt Class-D (650 W + 350 W, biamped)
12" Speaker with 2,5" voice coil
1" Driver with 1,75" voice coil
135 dB Max SPL Peak @ 10% THD (halfspace)
Asymmetrical horn (60°-90° x 55°), rotatable
Rugged hybrid (birch multiplex /MDF) housing
2 separate Inputs
EQ switch (High Power/Small Venue)
