L SUB 1200 A

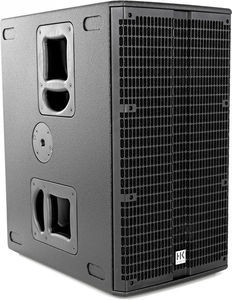

This compact and light subwoofer comes in a bass reflex enclosure. It is ideal for band PAs. The powered version sports a remarkably efficient 1,200 watt, Class-D power amp that can also drive a connected passive L Sub 1200. Loaded with two remarkably responsive 10" woofers, it delivers tight, snappy bass with a lot punch ranging all the way down to around 45 Hz. LINEAR SUB 1200 A can also be used in combination with mid/high units from theLINEAR 5 family, or as a bass extension to the ELEMENTS BIG BASE system.
Model
L SUB 1200 A
Max SPL 126 dB half space (@ 10% THD)
Max SPL peak 128 dB half space (@ 10% THD)
Max SPL calculated 129 dB half space
Frequency response +/- 3 dB 55 Hz – X-Over
Frequency response -10 dB 38 Hz – X-Over
Power Rating 1200 W
Amplifier Class D
Active protection circuits Undervoltage-Protection, Thermoprotection, Short-Circuit Protection, Overcurrent-Protection, Subsonic 24dB/oct., Peak Limiter
LF Speaker 2x 10" featuring advanced cooling technology
Cut-off Frequency active 110 Hz / 130 Hz variable with 24 dB/oct.
Connections 2x XLR–1/4"-Combo In, 2x XLR-Thru, 2x XLR-Mid/High Out, Speakon NL4 to L SUB 1200
Input Sensitivity +4 dBu @ Gain center-notched

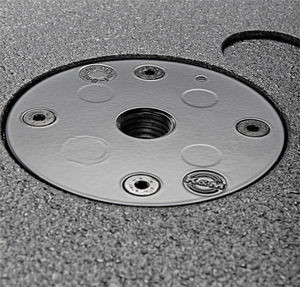

Pole mount 2x M20 (K&M)
Handles 4x HK Audio MultiGrip
Enclosure Birch multiplex

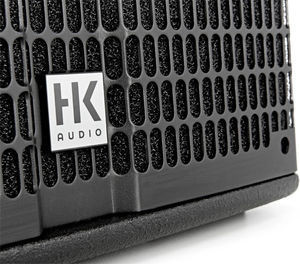

Grille 2 mm metal grille backed with black acoustic foam
Finish Acrylic enamel, black
Optional accessories Protective cover, M20 Distance Pole Add-On, Tilt Unit, 100 mm casters
Dimensions (WxHxD) 38 × 67 × 56 cm
Weight 30.7 kg / 67.7 lbs
פרטי המוצר
Compact Subwoofer for Band & DJ systems
1200 Watt Class-D Amping
2x 10" Speaker with 2,5" voice coil
128 dB Max SPL Peak @ 10% THD (halfspace)
Speakon out for passive extension Sub (L Sub 1200)
Rugged wood enclosure of birch multiplex
Swichtable X – Over frequency
Multifunctional handles
Ideal add-on to LINEAR 5 mid/high units
Can also be used in combination with LINEAR 3 mid/high units
