Main Features
MIDI Control Full assignable MIDI controls
ProDJ Link
Booth EQ
P-LOCK Fader Caps
Auto Standby
DVS Control rekordbox,Serato DJ Pro,TRAKTOR PRO 3
Specifications
Width 437.6 mm
Height 107.9 mm
Depth 467 mm
Weight 11.9 kg
Frequency Range 20 – 40000 Hz
Sampling Rate 96 kHz
A/D Converter 32 bit
D/A Converter 32 bit
S/N Ratio Line 105 dB
S/N Ratio Phono 88 dB
S/N Ratio Mic 79 dB
Distortion < 0.005 % (LINE)
Channels
EQ 4 band
EQ Range [Hi/Low] -∞ ~ +6 dB / [Hi Mid/Low Mid] -26 dB ~ +6 dB dB
COMP
Performance Control
Channels 6
Filter HPF,LPF
SEND
Short Delay
Long Delay
Dub Echo
Reverb
2 Externals (1/4-inch TS jack)
MULTI I/O
1/4-inch jack
USB (Type A)
Beat FX
Delay
Echo
Ping Pong
Spiral
Helix
Reverb
Shimmer
Flanger
Phaser
Filter
Trans
Roll
Pitch
Vinyl Brake
FX Frequency
X-PAD
rekordbox Quantize
Master Isolator
Crossfader
Crossfader Type Magvel Fader
CURVE Assignable
Fader Curve 3
Mic
Mic Connection XLR / 1/4-inch Jack Combo,1/4-inch TRS Jack
Talkover 3 Position Switch
Talkover Attenuator

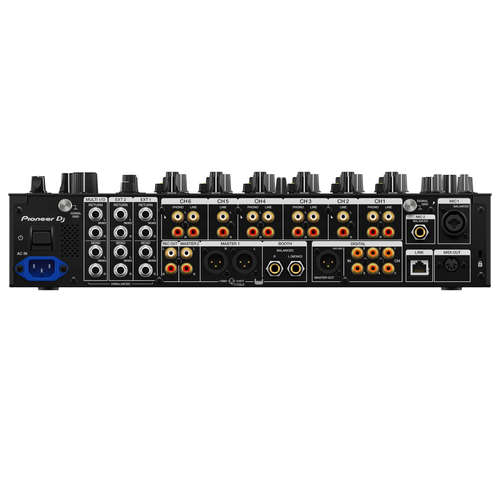

Terminals
Inputs
6 DIGITAL (Coaxial)
6 LINE (RCA)
4 PHONO (RCA)
Send/Return
3 SEND (1/4-inch TS jack)
3 RETURN (1/4-inch TS jack)
LAN 1
USB
2 USB B ports
1 USB A port
Outputs
2 MASTER (XLR, RCA)
1 BOOTH (1/4 inch TRS Jack)
4 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
1 REC OUT (RCA)
1 DIGITAL (AES/EBU)
1 MIDI (DIN)
