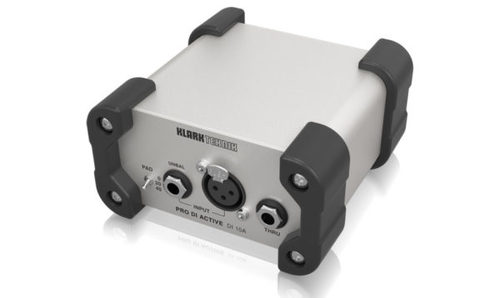

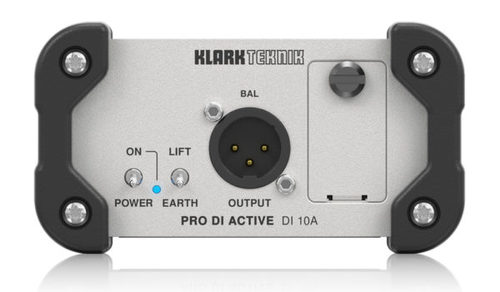

דיירקט בוקס אקטיבי KLARK TEKNIK DI 10A
Audio Connections
Input 1 x XLR, balanced
1 × 1/4″ TS, unbalanced
Input Impedance > 250 kΩ
Thru 1 × 1/4″ TS, unbalanced
Output 1 x XLR, balanced
Load Impedance > 600 Ω
Maximum Input level 10 / +30 / +50 dBu
System
Frequency Response 10 Hz to 90 kHz, ±3 dB
THDN < 0.02 % @ 1 kHz, 0 dBu
Noise Level < -112 dBu
PAD Switch 0 / -20 / -40 dB
Power Supply
Phantom power
18 V DC to 48 V DC
Battery 9 V Blockcell 6LR61
Dimension / Weight
Dimensions (W x D x H) 118 × 120 × 64 mm (4.6 × 4.7 × 2.5″)
Weight 0.56 kg (1.2 lbs)
36801 DI 10A
