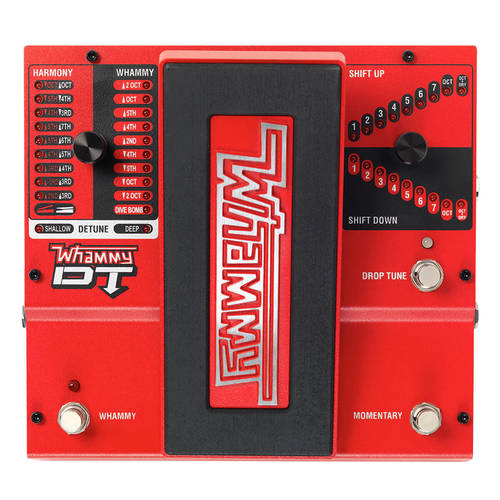

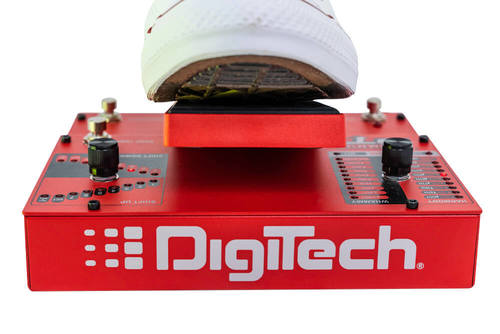

אפקט IGITECH WHAMMY DT PITCH
Introducing a new addition to the DigiTech Whammy Family – Whammy DT! We’ve taken the premier pitch shifting effects pedal added drop tuning and true bypass to bring you the ultimate Whammy pedal, the Whammy DT. With the Whammy DT, you can modify your tuning without having to change guitars or pause awkwardly to make adjustments for the next song. Key changes are at the tips of your toes and take just moments, which is crucial when the audience is feeling your vibe. Pitch shifting effects really help your guitar performance stand out and the Whammy pedal has been the core pitch shifting effect for famous artists for over 20 years. Now add full drop and raised tuning in addition to classic Whammy shifting to your effects arsenal and find out why the Whammy DT is the premiere pitch shifting effects pedal for every guitarist.
WHAMMY DTWHAMMY DTSPECIFICATIONS
General Specifications
SAMPLE RATE 44.1 kHz
FREQUENCY RESPONSE 20 Hz to 20 kHz
SIGNAL TO NOISE RATIO > -105 dB (A weighted); ref = max level, 22 kHz bandwidth
THD 0.004% @ 1 kHz; ref = 1 dBu w/ unityA/D
CONVERSION 24 bitD/A
CONVERSION 24 bit
POWER CONSUMPTION 2.4 Watts (< 265 mA @ 9 VDC)
POWER ADAPTER 9 VDC External AdapterDimensions
HEIGHT 2.5" (64mm)
WIDTH 6.5" (165mm)
DEPTH 7.75" (197mm)
Audio Output
OUTPUT TYPE 1/4” Unbalanced TS
MAX OUTPUT LEVEL +10 dBu
OUTPUT IMPEDANCE 1 kΩAudio Input
INSTRUMENT INPUT TYPE 1/4” Unbalanced TS
MAX INPUT LEVEL +5 dBu
INPUT IMPEDANCE 1 MΩ
MIDI INPUT 5-Pin Din
WHAMMYDTV-01
