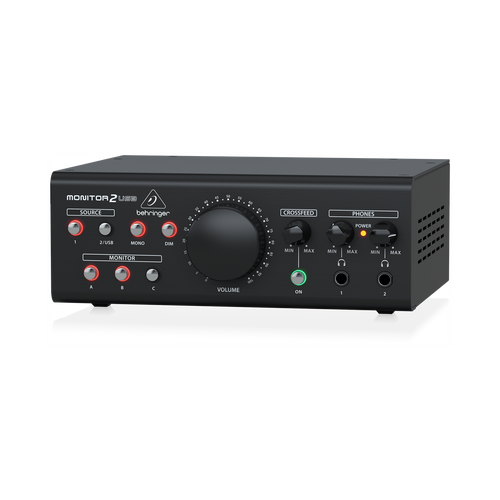

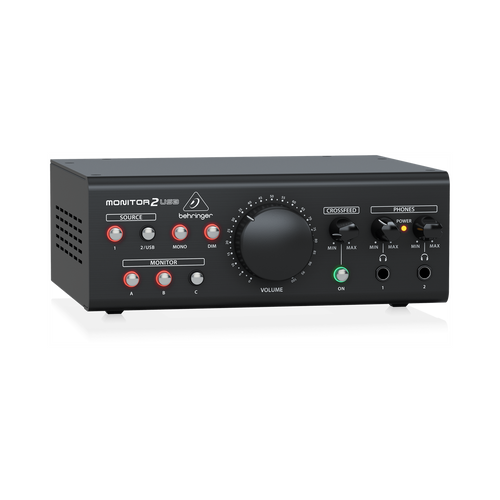

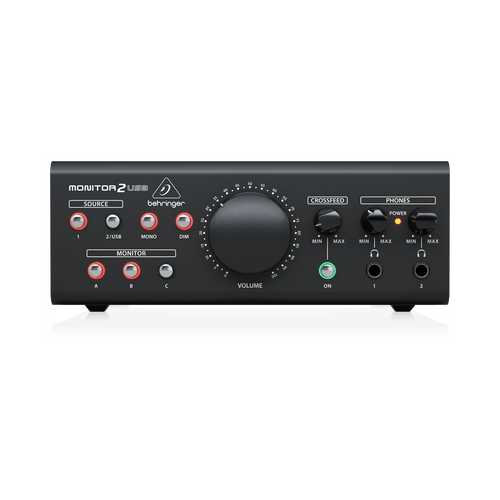

Premium speaker and headphones monitoring center
Large Volume knob with true VCA control for extremely precise level adjustments
Built-in stereo USB Audio Interface, perfect for computer-based studios
2 high-quality stereo inputs connect perfectly to your DAW
3 independent Monitor outputs to connect up to 3 sets of studio monitors
2 high-grade headphone amplifiers with separate volume controls
Crossfeed control emulates the stereo speaker panorama when listening through your headphones
Convenient Mono and Dim functions right at your fingertips
“Planet Earth” switching power supply for maximum flexibility (100 – 240 V~), noise-free audio, superior transient response plus low power consumption for energy savings
Category Specification
Analog Inputs
Input 1 2 x XLR
Impedance 20 kΩ balanced, 10 kΩ unbalanced
Sensitivity 4 dBu
Input 2 2 x XLR
Impedance 20 kΩ balanced, 10 kΩ unbalanced
Sensitivity +4 dBu / -10 dBV, switchable

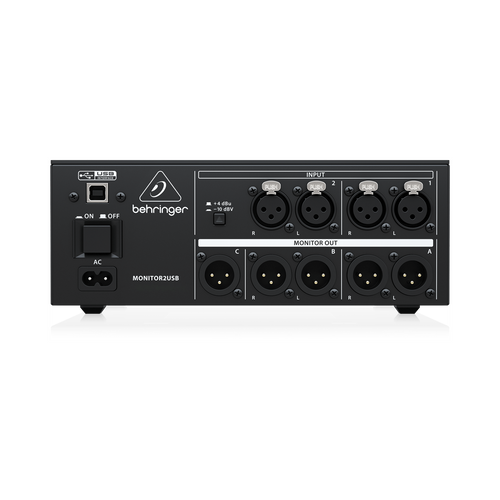

Analog Outputs
Monitor out A 2 x XLR, balanced
Monitor out B 2 x XLR, balanced
Monitor out C 1 x XLR, balanced
Phones 2 x ¼" TRS
Digital Processing
Input USB 1.1, type B
D/A conversion 44.1 / 48 kHz
System
Frequency response (-3 dB) <10 Hz to 120 kHz (-3 dB)
Signal-to-noise ratio 85 dB @ 0 dB, A-weighted
CMRR >50 dB @ 1 kHz, 0 dBu input level, unity gain
Distortion (THDN) 0.03 % @ 1 kHz, 0 dBu input level, unity gain
Crosstalk >75 dB @ 1 kHz
Dim -15 dB
Power Supply / Voltage (Fuses)
Switch mode power supply 100-240 V~ 50/60 Hz
Power consumption 15 W
Dimensions / Weight
Dimensions (H x W x D) 84 × 216 × 199 mm (3.3 × 8.5 × 7.8″)
Weight 1.5 kg (3.3 lbs)
